Find which server an Azure Devops build has been run on

We have Azure Devops Services coupled with several internal build servers, so when troubleshooting builds, especially sporadic issues, it helps to know which build server the build has run on in order to understand if it is a server specific issue or not. We happen to use Azure Devops Services for our Azure Devops installation and internal build servers.

The powershell script below uses the Azure Devops rest api to retrieve the build information. You may need to adjust the proxy parameter for the invoke-restmethod lines as well as update some of the variables to match your environment.

The list of build runs i shown in the powershell gridview. There is a ShowInExcel commandline switch in case you prefer to view data with Excel. With this switch enabled, the data will be shown in a gridview and then saved as a csv file, finally the invoke-item command is used to trigger the opening of the .csv file with the assiocated application. Excel may be overkill in this situation but I left it as an example.

[CmdletBinding()]
param(
[System.String]$project="---- Default AZDOS PROJECT ----",
[System.String]$buildIdNumber="--- Default BUILD DEFINITION ID ---",
[System.String]$maxBuilds="10",
[switch]$ShowInExcel
)
$pat = '----- YOUR AZDOS PAT TOKEN -----'
$header = @{Authorization = 'Basic ' + [Convert]::ToBase64String([Text.Encoding]::ASCII.GetBytes(":$($pat)"))}
$baseBuildUrl = "https://dev.azure.com/----- COLLECTION ----/$project/_apis/build/builds"
$buildListUrl = "$($baseBuildUrl)?api-version=6.0&definitions=$buildIdNumber&queryOrder=finishTimeDescending&maxBuildsPerDefinition=$maxBuilds"
Write-output $buildListUrl
try
{
#Get build data
$builds=Invoke-RestMethod -uri $buildListURL -Method Get -Header $header -Proxy $env:HTTP_PROXY #-OutFile $outFileName
$builds.value[0].buildNumber
$List = New-Object System.Collections.ArrayList
foreach ($build in $builds.value)
{
#$build=$builds.value[2]
write-host $build.status
if ($build.status -ne "notStarted"){
$timeLineUrl="$baseBuildUrl/$($build.id)/Timeline?api-version=2.0"
$timeline=Invoke-RestMethod -uri $timeLineUrl -Method get -Header $header -Proxy $env:HTTP_PROXY
# Can't get the duration if the build isn't done!
if ($build.status -ne "completed"){
$duration = $build.status
} else {
$duration = "{0:hh}:{0:mm}:{0:ss}" -f $(New-TimeSpan -end $(get-date $build.finishTime) -start $(get-date $build.startTime))
}
$Hash = [ordered]@{
date = get-date -date $build.startTime -Format "yyyy/MM/dd"
time = get-date -date $build.startTime -Format "HH:mm"
duration = $duration
agent = $timeline.records[2].workerName #arbitrary choice of a step in the collection
result = $build.result
successfulSteps = ($timeline.records.result -eq "succeeded").count
buildId = $build.id
buildNumber = $build.buildNumber
branch = $build.sourceBranch.Replace("refs/heads/","") # still some builds don't use branch name as build number
}
$List.Add( $([pscustomobject]$Hash) )
}
}
if ($ShowInExcel) {
$file="$($env:TEMP)\$($build.definition.name)-builds-$(get-date -Format "yyMMdd.HHmm").csv"
# Show results in a gridview window and then save to a temporary file
$List | Out-GridView -PassThru -Title "$($build.definition.name) builds" | Export-Csv -NoType -UseCulture -path $file
write-host "Data saved in $file."
write-host "Opening in Excel"
invoke-item $file
}
else {
$List | Out-GridView -Title "$($build.definition.name) builds"
}
}
catch [Exception]
{
Write-Host $_.Exception.Message
Write-Host $_.Exception.Response
}

Analyze Azure Devops agent usage

Azure Devops agents write logs of all the work they do: with one log per pipeline run. These logs can be analyzed to understand the usage levels of agents on the server by using both the file attributes and contents, which include all the variables and script for a process.

Update the powershell script below with the corresponding folders for your agent installation and update the list of agents, or remove the foreach if you only have one agent running.

The log folders don't appear to be cleaned so you might want to implement a cleaning schedule, or limit the get-childItem to the most recent week or month if you have a lot of traffic on your agents.

$List = New-Object System.Collections.ArrayList
foreach ($agent in ("A7","B1","C1"))
{
   $expression = /^.(\d{4}-\d{2}-\d{2}) .*Job message:\n(.*)\[\1
   $WorkerFiles=Get-ChildItem C:\azagent\$agent\_diag\Worker*.log
  foreach ($file in $WorkerFiles)
  {

    $contents = ( Get-Content $file -raw  )-replace ' \*{3}', ' "BLOCKED"'
    #$contents = ( Get-Content C:\azagent\B1\_diag\Worker_20210706-104057-utc.log -raw  )-replace ' \*{3}', ' "BLOCKED"'

    $result = $contents -match "(?s)\[(\d{4}-\d{2}-\d{2}).* Job message:(.*?)\[\1"
    $jobjson = ConvertFrom-Json $Matches[2]


    if ($result)
    {
    $Hash = [ordered]@{
                file=$file.Name
                date = get-date -date $file.CreationTime -Format "yy/MM/dd"
                start = get-date -date $file.CreationTime -Format "HH:mm"
                end = get-date -date $file.LastWriteTime -Format "HH:mm"
                duration  = $file.LastWriteTime - $file.CreationTime
                environment = $jobjson.variables.'release.environmentName'.value
                agent     = $agent
                project = $jobjson.variables.'release.definitionName'.value
                link = $jobjson.plan.owner._links.web.href
            }
    $List.Add(  $([pscustomobject]$Hash) )
    }
    else
    { write-host "No Match for " + $file.FullName}
  }
}

$fileName="$($env:TEMP)\TFSAgentUsage.csv"
$List | Export-Csv -NoType -UseCulture -path $fileName

Powershell snippets for Octopus Deploy

Extract url to triggering build from an Octopus Deploy release

Our build pipelines create releases in Octopus Deploy and send along the commit information. It is possible to find the buildid and url to the build from the Octopus.Release.Notes variable.

if ($OctopusParameters["Octopus.Release.Notes"] -match "Build \[(.+)\]\((?<url>.+)\)")

{

   $buildUrl = $Matches.url

   $buildId=($buildUrl -split "=")[-1]

} else {

   $buildUrl="Build info missing. Manually created release?"

   $buildId ="Unkown"

}

Octopus.Deployment.Changes contains change information and a markdown version of that information is in  Octopus.Deployment.ChangesMarkdown.

Parameter validation in step templates

Validate parameters in step template and create variables from the parameters.Inside the foreach, the first line checks 'required' parameters have a value.
The second if statetment checks for '#{' in the parameter value.
The last line creates a variable with the name of the parameter and sets the value.

{
    # Check for required variables
    if ( @("pShareName","pPhysicalPath") -contains $pName) { if (!$OctopusParameters[$pName]) {Write-Warning "Parameter $pName cannot be empty!"; exit 1}}
    # Check for #{ in any variables
    if ($OctopusParameters[$pName] -and $OctopusParameters[$pName].indexOf("#{") -ne -1) { Write-Warning $("Parameter {0} contains '{1}'! Check variable exists and is scoped properly." -f $pName,$OctopusParameters[$pName]); exit 1 }
    # set a local variable
    Set-Variable -Name $pName -Value $OctopusParameters[$pName]
}

Copy variables from one Octopus Deploy process to another

Cloning Octopus Deploy steps from one process to another does not copy any variables between the two, for understandable reasons, and there is no inbuilt method for cloning variables.

This powershell script:

• gets the project variables from an Octopus Deploy process
• presents the variables in a Powershell gridview
• adds the variables selected in the gridview to the target Octopus Deploy process - there is no logic checking if the variables already exist

$sourceProjectName="API.SourceProject"

$targetProjectName="API.TargetProject"

# OD API KEY

$ODAPIKey = "API-PUT-YOUR-KEY-HERE"

$ODUrl = "http://od.somecompany.org"

$credential = "?apikey=$ODAPIKey"

# for all projects

$ODProjectQuery = "$ODUrl/api/projects/all$credential"

$headers = @{

 "X-Octopus-ApiKey"="$ODAPIKey"

 "accept"="application/json"

}

function putData ($link, $body)

{

    $QueryString = "{0}{1}" -f $ODUrl, $link

    #UTF-8 conversion is required to handle international letters like ö å ñ

    $body_utf8=([System.Text.Encoding]::UTF8.GetBytes($($body | ConvertTo-Json -Depth 15)))

    $requestResponse=Invoke-WebRequest -uri $QueryString -Method Put -Body $body_utf8 -ContentType "application/json" -Headers $headers

    Write-Host "Update Status: $($requestResponse.StatusCode) $($requestResponse.StatusDescription)"

}

function getData ($link)

{

    # Create querystring from partial link

    $QueryString = "{0}{1}{2}" -f $ODUrl, $link, $credential

    Invoke-RestMethod -uri $QueryString -Method Get

}

try {

    #Get a list of all projects

    $projects = Invoke-RestMethod -uri $ODProjectQuery -Method get



    # Select Source Project

    $sourceProject=$projects | Where-Object { $_.Name -eq $sourceProjectName}

    # Get variables

    $sourceVars=getData $sourceProject.Links.Variables

    # Display variables in gridview and save selected variables

    $importVars = $sourceVars.Variables | Select-Object -Property * -ExcludeProperty Id | Out-GridView -PassThru -Title "Select variables to copy to target project"

    # write out selected variables to output

    $importVars | ConvertTo-Json

    # Get Target project

    $targetProject=$projects | Where-Object { $_.Name -eq $targetProjectName}



    # get target variables

    $targetVariables = getData $targetProject.Links.Variables

    Write-Host "Target variable version pre-update: $($targetVariables.Version)"

    # Add selected variables to target variables

    $targetVariables.Variables += $importVars

    # Send updated variable list back to target OD process

    putData $targetProject.Links.Variables $targetVariables

}

catch

{

    Write-Host $_.Exception.Message

    Write-Host $_.Exception.Response.StatusDescription

    Write-Host $_.ErrorDetails

}

Using Azure Devops Invoke REST API task in yaml

 Documentation on using the Invoke REST API Azure DevOps task is sparse so I am documenting my solution; hopefully I can spare someone some time and headaches.

First, to be clear, this task is categorized in the GUI as a gate so the Get use case is for true/falseness. This means it is not possible to access any part of the response outside of this step. Although it would be straight forward to script calling a rest method, it is appealing to have a simple step that handles all that and I just configure a condition. It is worth noting, if you don't need to parse the response then Invoke REST API post is a great way for fire and forget type messaging - like sending a teams notification.

In my scenario, I want to automate release branch creation and steps required around that in our corporate processes. Before creating the branch, I want to make sure that Master is not ahead of Develop. Ahead count is available in the Git Stats API. There is a sample response in the documentation that shows that aheadCount is a root property.

These are the steps I followed

• Configure a generic service connection without user or password/token information.
• Create a yaml file with the stages and jobs needed. Note that this is a Server task.
• Under steps, add an Invoke REST API step, the gui gives some guidance here but remove the default headers and add an Authorization header containing "Bearer $(System.AccessToken)".
• Add the url, using system variables for simpler re-use.
• Set the success criteria to "eq(root['aheadCount'], 0)"

• Following jobs or tasks in the stage should have a dependsOn configured for this task or job.

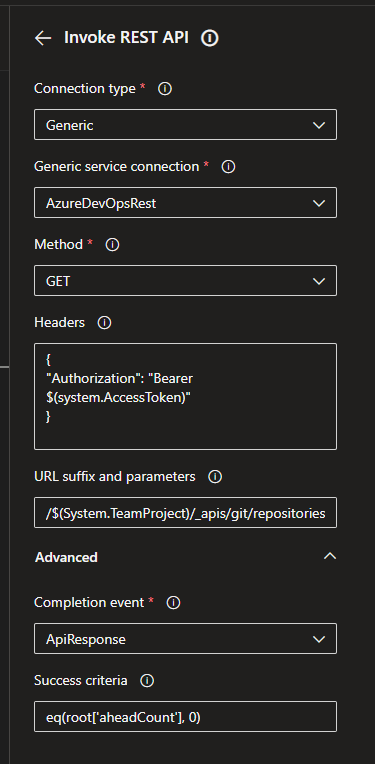

The GUI interface looks like this



The yaml looks like this. I use a simple delay step just to test the gate quickly before adding the rest of the logic.

stages:

  - stage: Release_Branch

    displayName: Create release branch

    condition: always()

    jobs:

      - job: EntryGate

        displayName: Entry gate

        pool: Server

        steps:

        - task: InvokeRESTAPI@1

          displayName: Check ahead count is 0

          inputs:

            connectionType: 'connectedServiceName'

            serviceConnection: 'AzureDevOpsRest'

            method: 'GET'

            headers: |

              {

              "Authorization": "Bearer $(system.AccessToken)"

              }

            urlSuffix: '/$(System.TeamProject)/_apis/git/repositories/$(Build.Repository.ID)/stats/branches?name=master&api-version=6.0'

            waitForCompletion: 'false'

            successCriteria: "eq(root['aheadCount'], 0)"

      - job: one_min_delay

        pool: Server

        dependsOn:

        - EntryGate

        steps:

        - task: Delay@1

          inputs:

            delayForMinutes: '1'

Using outlook rules, json and powershell to link TFS 2017 work items to a parent

We use a TFS user story as a Support inbox and wanted to simplify creating new work items for common issues. We created templates for work items based on existing work items which had the parent required but discovered that the parent link does not get created for the new items.

Since our team doesn't have admin access to the TFS server, I decided to see if I could use the TFS notifications to trigger a custom outlook rule script which would send the task id to a local powershell script which in turn does the actual link creation. I decided that would be easier than trying to work out how to access REST services through VBA since there are more powershell examples out there than VBA examples.

I chose to go with json to define the parent link instead of doing it through code. It seemed simpler to me for maintenance purposes. The relevant json documentation was just a little confusing for a json novice because it looks like there should be double curly brackets under attributes. However doing that gave me the error:

"You must pass a valid patch document in the body of the request."

The final json looks like this

[
  {
    "op": "add",
    "path": "/relations/-",
    "value":
    {
        "rel": "System.LinkTypes.Hierarchy-Reverse",
        "url": "https://tfs.myCompany.org/tfs/DefaultCollection/_apis/wit/workitems/259355",
        "attributes":
        {
            "isLocked": false
        }
    }
}
]

The Outlook rule looks for all emails with "Task" in the subject and "create Task" in the body.

You may need to enable the developer tools in outlook first. Once it is enabled, click on the Developer Tab and click on Visual Basic to the far left. This will open the VBA editor.

The outlook rule script itself is very simple.

Sub SendToTFS(MyMail As MailItem)
 If InStr(1, MyMail.Subject, "Task") = 1 Then
   Dim taskid As String
   taskid = Mid(MyMail.Subject, 6, 6)
   scriptCmd = "powershell.exe -NoLogo -NonInteractive -File ""e:\scripts\TFSLinkParent.ps1"" -argumentlist " & taskid & " > ""e:\scripts\TFSLinkParentLog.txt"""
   Shell scriptCmd
 End If
End Sub

The code first checks that Task is right at the beginning of the subject line to avoid reacting to forwards and replies.
The task id is then extracted from the subject line and sent to the powershell script.

Finally the Powershell script to do the job looks like this:

$TaskId = $args[1]

$taskItemURL = "https://tfs.mycompany.org/tfs/DefaultCollection/_apis/wit/workitems/$TaskId"
$taskItemRequest = $taskItemUrl+'?$expand=relations'
$taskItemJson = Invoke-RestMethod -uri "$taskItemRequest" -Method get -UseDefaultCredentials -OutFile E:\scripts\TFSLinkReqLog.txt

if(!($taskItemJson.relations))
{
    $result = Invoke-RestMethod -uri $taskItemURL"?api-version=1.0" -Method patch -UseDefaultCredentials -ContentType application/json-patch+json -InFile E:\scripts\JsonTemplate.txt  -OutFile E:\scripts\TFSLinkLog.txt
}

The script starts with downloading the json for the work item and checks that it doesn't already have any relations. Child relations would also get caught by this check. If there aren't any relations then the current work item is attached to the parent.

Update all binding thumbprints

We have 20+ applications and have to update to a new certificate. To avoid having to do a new build and release of all of these applications, some of which haven't been updated for some time, I chose to create a powershell script to update all send ports on the fly.

The script does not stop or start host instances. This could easily be incorporated; check my other blog entry on starting and stopging host instances.

The script uses the BizTalk ExplorerOM to access the settings which means nothing extra needs to be installed on the BizTalk servers.

This script looks long because it includes so much confirmation in the way of output for testing before the final run. The real logic is only 8 lines, including 4 lines of variable declarations.

This example changes two thumbprints at once. It could easily be modified up or down.

$oldClientCert = "ee aa bb 11 22 33 44 55 66 77 88 99 00 ff dd cc ab cd ef 01"
$newClientCert = "ne wt hu mb pr in tg oe si nh er e0 00 00 00 00 00 00 00 00"
$oldServiceCert = "aa bb cc dd ee ff 00 11 22 33 44 55 66 77 88 99 12 23 34 56"
$newServiceCert = "34 2a 15 53 3e 7d 6a 0c 51 20 e4 50 6b 53 df 72 84 55 aa 6a"

[void] [System.reflection.Assembly]::LoadWithPartialName("Microsoft.BizTalk.ExplorerOM")
$Catalog = New-Object Microsoft.BizTalk.ExplorerOM.BtsCatalogExplorer
$Catalog.ConnectionString = "SERVER=DBINSTANCENAME;DATABASE=BizTalkMgmtDb;Integrated Security=SSPI"

#EnumerateSendPorts $Catalog
 $port = $catalog.SendPorts[1]
 Write-host "B4 ----> " $port.PrimaryTransport.TransportTypeData

 $catalog.SendPorts | % {

# Line below replaces thumbprints  - UPDATES ORIGINAL VALUE - BUT NO SAVE
$_.PrimaryTransport.TransportTypeData=_
($_.PrimaryTransport.TransportTypeData.Replace($oldServiceCert,$newServiceCert)).Replace($oldClientCert,$newClientCert);

# Line below replaces thumbprints and prints out the new TransportTypeData string - NO UPDATE TO ORIGINAL VALUE
#($_.PrimaryTransport.TransportTypeData.Replace($oldServiceCert,$newServiceCert)).Replace($oldClientCert,$newClientCert);
   }
$port = $catalog.SendPorts[1]
Write-host "After ----> " $port.PrimaryTransport.TransportTypeData

#No changes are saved until the following line is run
$Catalog.SaveChanges();

When testing comment out the the last line to skip saving the updates. To just output the updates, comment out the row updating the original value and uncomment the No Update line.

Don't forget to change the connection string to point to the correct management database instance!

Blog software may force some line breaks - and I added one underscore (_) to indicate I broke the line there.
